EFCO LITE® Straight Wall Formwork

EFCO LITE Forming System

  • EFCO LITE - Z-Ribs

    Z-RIBS

    Formed steel Z-RIBS at 9" c/c span the width of the panel and support the face plate. EFCO LITE Z-RIBS provide strength to the form face sheet. Literally designed in a “Z” shape, the rib is welded directly to the face sheet. The webs of the Z-RIBS are punched with bolt retainer holes to hold Quick Bolts when panels are being cycled. The Z-RIB holes can also be used to attach accessories, as an example, scaffolding. When the EFCO LITE panels are used with the Z-RIBS in the horizontal position, as an example, for column forms, turn the outstanding flange of the ribs leg up. This provides hand and foot holds for easy climbing using proper safety equipment.

  • EFCO LITE Bottom Yokes

    Bottom Yokes

    EFCO's Bottom Yoke ties opposing panels and allows for the securing of bulkheads.

  • EFCO LITE Combination Bias Corners

    Combination Bias Corner (CBC)

    Inside corners and pilasters are easily formed using EFCO's Combination Bias Corner (CBC) form. This standard form eliminates job built fillers and or take-up panels in the middle of walls. For tight, enclosed situations such as inside cores, use the Reverse CBC in combination with the CBC to relieve a corner before cycling.

  • EFCO LITE Corner Bearing Blocks

    Corner Bearing Blocks

    Large setups of gang forms can be easily moved as a complete setup. The reinforced corner bearing blocks provide the strength and positive “fit up", adding to the system's structural strength and continuity of gang forms.

  • EFCO LITE Grade Strips & Reveals

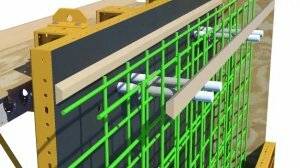

    Grade Strips & Reveals

    Use EFCO's self-drilling screws for easy application and for attachments that remain secure.

  • EFCO LITE Lifting Eyes

    Lifting Eyes

    Lifting Eyes bolt directly onto the form and allow cycling of equipment by crane.

  • EFCO LITE Outside Angle Corners

    Outside Angle Corners

    EFCO's Outside Angle Corner connects panels on outside corners.

  • EFCO LITE Pipe Bracing

    Telescoping Push-Pull Pipe Brace

    The Telescoping Push-Pull Pipe Brace is use for easy alignment and plumbing the form setup. The EFCO Pipe Brace Shoe is used to securely hold the setup down and is designed to give easy access to the anchoring bolt.

  • EFCO LITE Quick Clamp

    EFCO Bolt & EFCO Quick Clamp

    Use the Quick Bolt or the Quick Clamp to quickly join and align vertical joints with its pin through a joint and flanges for excellent alignment of form panel joints.

  • EFCO LITE Rugged Tie

    EFCO Rugged Taper Ties

    The high capacity Rugged Taper Tie, with a 30,000 lb. per tie working load, you can use fewer ties per square foot of form surface. Each Rugged Taper Tie only has three parts to handle and fewer ties per square foot of concrete surface. This results in substantial labor savings with every tie placed and removed and fewer tie holes to fill and patch. In addition, the Rugged Taper Tie has no consumable parts.

  • EFCO LITE Scaffold Brackets

    Scaffold Brackets

    Attach to the form for quick installation. Used in conjunction with contractor's scaffold planks, handrails, and toe boards, they provide a safe work scaffold for easy access to form hardware and for pouring operations. Timber or Pipe handrails can be used.

  • EFCO LITE SUPER STUD

    SUPER STUD

    SUPER STUDS are the backbone of the EFCO LITE system, producing straight walls with multiple panels and can serve as a plumbing mast and alignment system. SUPER STUD Tie Bearings distribute the load to the SUPER STUDS.

  • EFCO LITE Top Yoke

    Top Yokes

    A Top Yoke is all that is required to tie the top of the form set-up on a 10'-0" wall.

Lightweight Large Gang & High Wall Formwork

EFCO LITE® is the complete lightweight forming system. It is the lightweight answer to large gang and high wall projects.

EFCO LITE® APPLICATIONS

Whatever the application, big or small, EFCO LITE is the lightweight forming system with heavy duty features. Typical applications include:

  • High-rise offices
  • Apartments
  • Basements
    • Foundation shafts
    • Shear walls
    • One sided wall forming
  • Sewage treatment plants
    • Large tanks with Y walls
    • Haunches
    • Divider Walls
  • Commercial Buildings
  • Shopping Centers
  • Hospitals
  • Hotels
  • Retaining Walls

FEATURES AND BENEFITS

  • The 4 1/2” deep panel
  • Excellent panel joint alignment
  • Combination bias corner
  • Gang forming operations
  • Single joint finish
  • Climbing for access
