About the CustomerAmerican Bridge Logo

Company: American Bridge

Project Location: Kansas City, Kansas

Project Requirements

  • 20 piers; three river piers and 17 piers over land
  • The smaller columns and caps over land included ‘6’ x 4′ x 21′ (1.8 m x 1.2 m x 6.4 m) tall columns with caps measuring 8′ (2.4 m) tall x 48′ (14.6 m) long x 6′ (1.8 m) wide the largest measuring 72′ (22 m) wide x 110′ (33.5 m) tall x 12′ (3.6 m) deep.

Formwork Used

PLATE GIRDER

Project Overview

Replacement of the west bound lanes of the Lewis & Clark bridge along I-70 which spans the Kansas River.

Customer Benefits

  • The bigger piers and caps were made in four to five pours using EFCO PLATE GIRDER

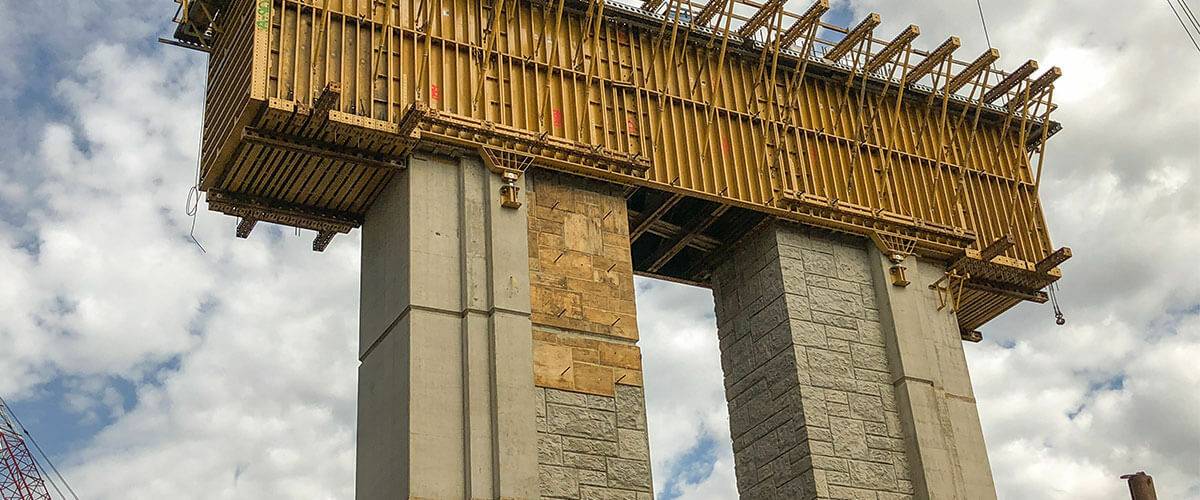

  • Cap forming can be even more efficient by completely assembling a cap form on the ground and then placing both the cap form and the reinforcing steel fully assembled into place for pouring.

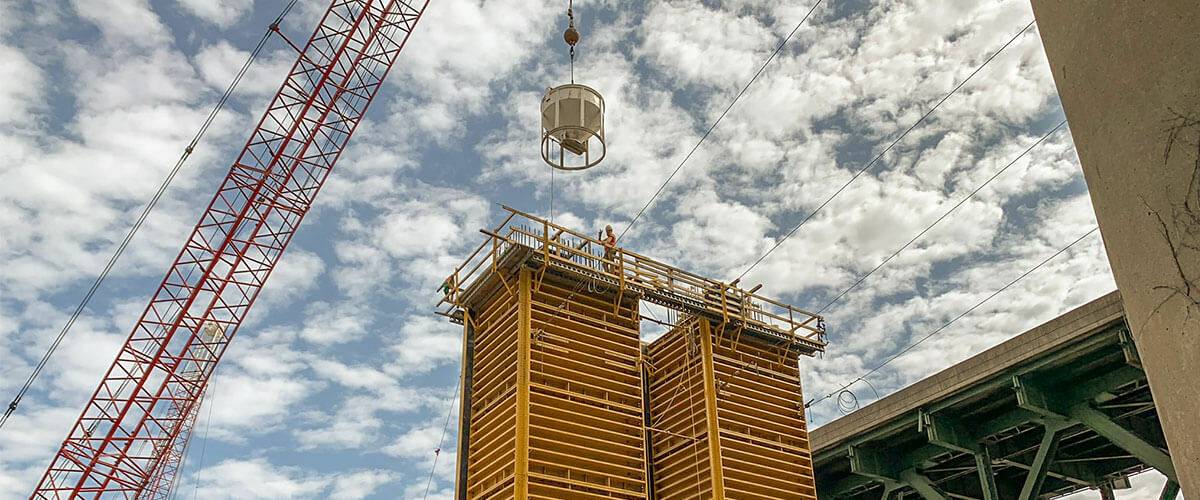

Lewis & Clark Bridge – Kansas City, Kansas

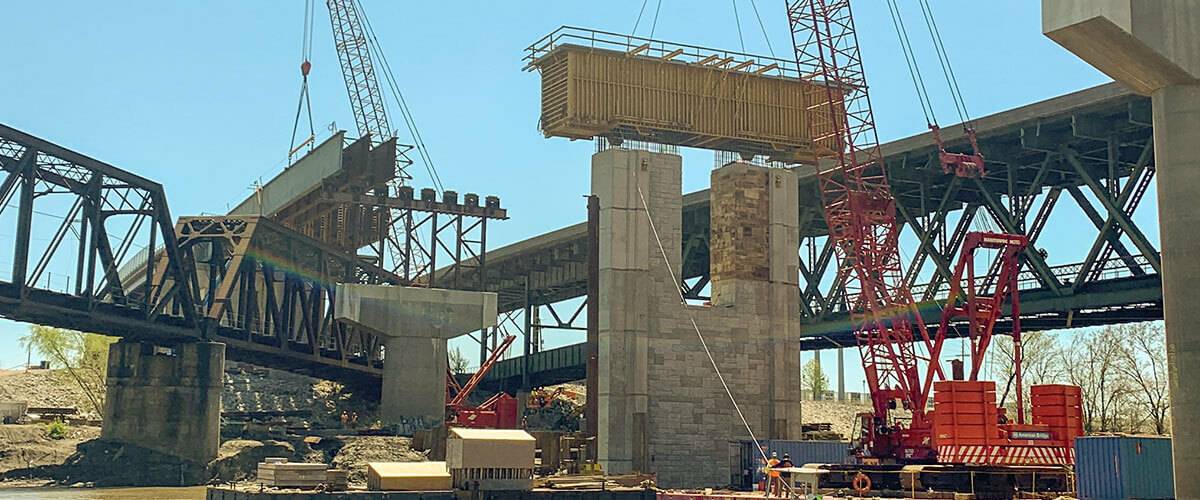

Lewis & Clark Bridge – Kansas City, Kansas
Lewis & Clark Bridge – Kansas City, Kansas
Lewis & Clark Bridge – Kansas City, Kansas
Lewis & Clark Bridge – Kansas City, Kansas
Lewis & Clark Bridge – Kansas City, Kansas
Lewis & Clark Bridge – Kansas City, Kansas
Lewis & Clark Bridge – Kansas City, Kansas
Lewis & Clark Bridge – Kansas City, Kansas
Lewis & Clark Bridge – Kansas City, Kansas
