PLATE GIRDER® System for Columns

PLATE GIRDER Columns

  • Outside Angle Corner

    Outside Angle Corner

    The simple and easy-to-use outside angle corner with the high-strength excellent tensile qualities of the EFCO Quick Bolt carry the column concrete pressures easily around the corner. Compare this to the problems that some of the other systems have with outside corners.

  • EFCO Quick Bolt

    EFCO Quick Bolt

    EFCO Quick Bolt is the fastest and lightest form fastener available. With this fast, six square threads per inch fastener, no hammer is required. In just seconds, the Quick Bolt assembly can be inserted, nutted and tightened with a spud wrench to achieve a tensile capacity of 19,000 lb working load and a single fastener shear capacity of 9,000 lb to connect form panels.

  • PLATE GIRDER Z-RIBS

    Z-RIBS

    Z-RIBS on 1-foot centers give you a structurally sound form with minimum deflection. Z-RIB design and placement helps to keep the face sheet flat. Turn the Z-RIB leg up and you have an easy handhold and foothold to work from. The Z-RIB is also an excellent retainer for Rugged Tie assemblies and other accessories between pours and when flying forms.

PLATE GIRDER COLUMN FEATURES

Available in widths of 2′ to 12′ and lengths of 1′ to 12′

Produces an architectural concrete finish

Withstands pour pressures up to 4700 lb/ft2

Forms columns up to 12′ x 12′ without ties

Safe to climb with proper restraint equipment

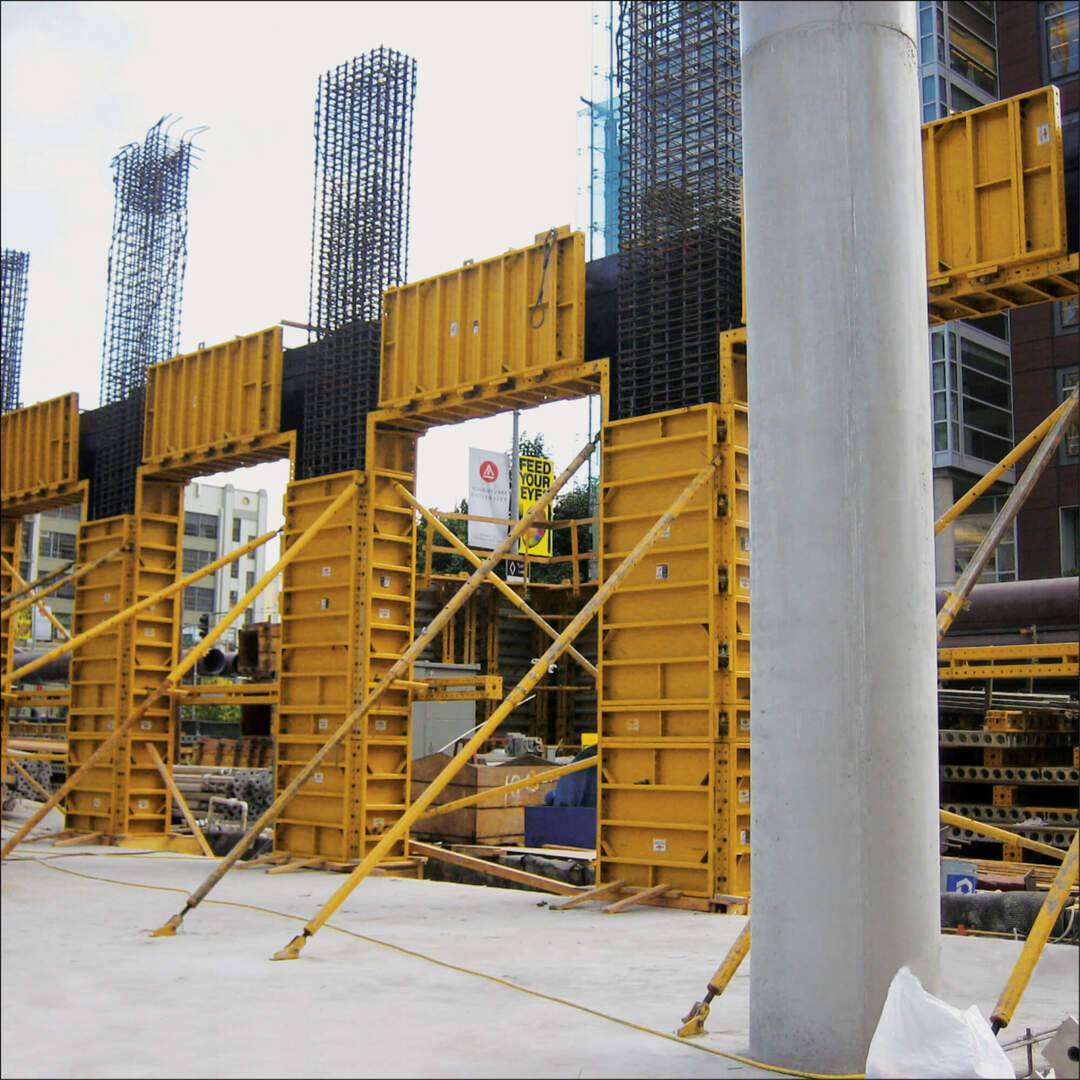

Heavy Duty Column Formwork

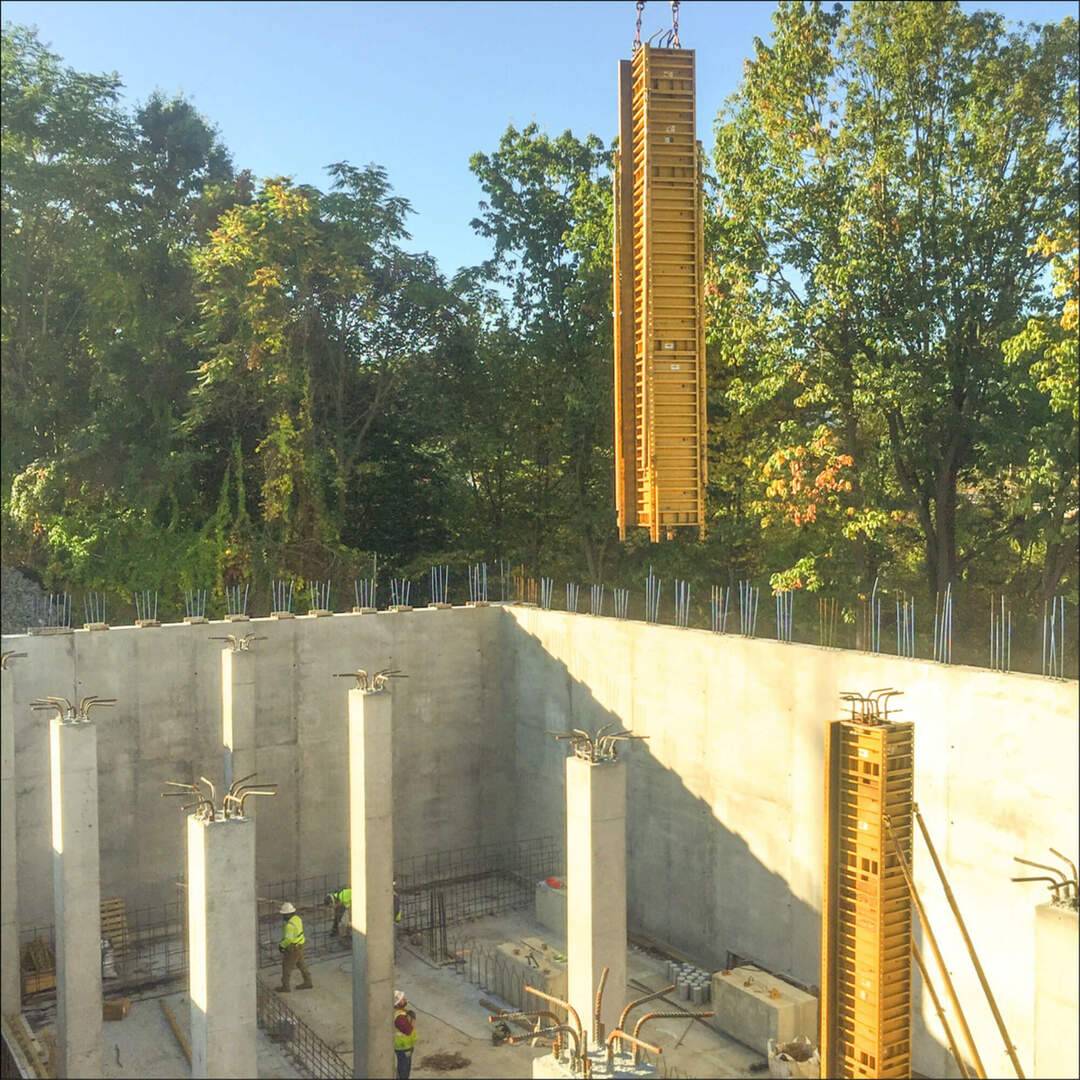

The EFCO PLATE GIRDER® Forming System is versatile for self-spanning applications and walls. In addition, it is an excellent form for rectangular columns. Use the PLATE GIRDER panel with the ribs horizontal for a vertical column, and you can produce an excellent architectural column without any internal ties.

Formwork Solutions for Bridge Pier Columns

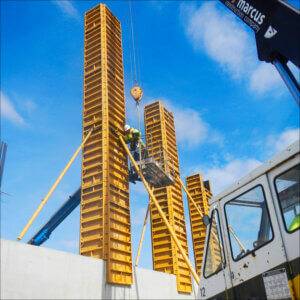

Z-RIB® Design for Climbing Columns

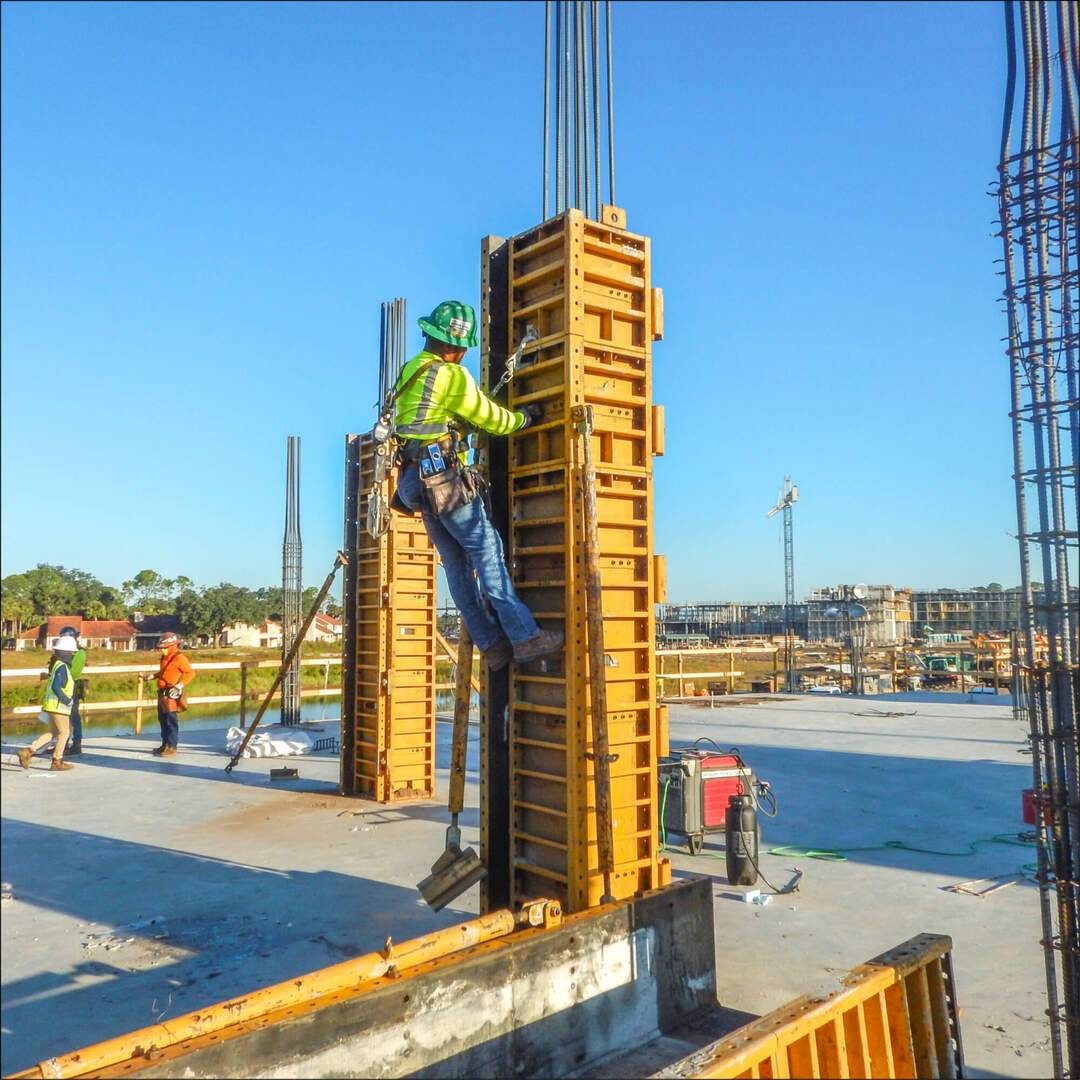

The EFCO Z-RIB design lets you climb the forms with appropriate safety equipment without needing a ladder. Each rib acts as a rung. Easy access and accessories always where you need them for the next setup are benefits of the EFCO system. Labor savings are significant.

Outside Corner Stability with Quick Bolt®

The simple and easy-to-use outside angle corner with the high-strength excellent tensile qualities of the EFCO Quick Bolt easily carries the column concrete pressures around the corner.

Benefits of the EFCO Quick Bolt®

The EFCO Quick Bolt® is the fastest and lightest form fastener available. No hammer is required with this fast, six square threads-per-inch fastener. In just seconds, the Quick Bolt® assembly can be inserted, nutted, and tightened with a spud wrench to achieve a tensile capacity of 19,000 lb working load and a single fastener shear capacity of 9,000 lb to connect form panels.

The same Quick Bolt® fastener can connect panels, scaffolding, top and bottom yokes, aligning and bracing, and accessories, including pipe braces, to the system. When the EFCO SUPER STUD System works for you again, only the single EFCO Quick Bolt is used for a fastener. In contrast, clamp-type systems only connect panels.
